Governance Tour

This is a self-serve, ~30-minute tour of Brutor’s governance controls. You will build a small governed environment from scratch, then deliberately violate every control you set — and watch each decision arrive in the logs and Mission Control.

What you’ll set up, in order:

1. A resource group — the unit of governance
2. A model binding — what the group may call
3. A user-group binding and an API key — who may call it
4. A daily token budget and an RPM limit
5. A PII guardrail that blocks on chat_input

Every step shows both the Admin Console clickpath and the equivalent Admin API call, so you can replay the whole tour as a script later (see setup scripts).

This is the pipeline you are about to exercise. Each control you configure below is one of the gates on the top row — and each violation you trigger is one of the stop boxes:

A refused call never reaches the provider, but it is never invisible either — by the end of the tour you will have produced several of those refusals yourself and found each one in the proxy logs.

Prerequisites: a running gateway (quickstart) with a provider API key configured on at least one enabled model, and the seeded admin login.

Step 0 — Get an admin token

Everything below uses the Control Plane admin API on :5050. Log in once and reuse the bearer token:

curl -s http://localhost:5050/v1/admin-users/tenant/login \
  -H "Content-Type: application/json" \
  -d '{"username": "admin", "password": "Admin123!", "tenant_id": "default"}'

{
  "access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...",
  "token_type": "bearer",
  "expires_in": 3600,
  "admin": { "username": "admin", "...": "..." },
  "session_id": "..."
}

export TOKEN="eyJ..."   # the access_token value
export CP=http://localhost:5050

1. Create a resource group.

   A resource group bundles resources (models, MCP servers, skills), the people allowed to use them, and the limits and policies that apply. Governance in Brutor always hangs off a resource group.

   Admin Console: Resource Groups → New Group → name it gov-tour, type team → Create Group.

   API:

   curl -s -X POST $CP/v1/admin/resource-groups \
     -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
     -d '{
       "name": "gov-tour",
       "display_name": "Governance Tour",
       "description": "Scratch group for the governance tour",
       "group_type": "team",
       "inherit_resources": false
     }'

   {
     "id": "3f9c2c6e-...-...",
     "name": "gov-tour",
     "display_name": "Governance Tour",
     "group_type": "team",
     "parent_group_id": null,
     "hierarchy_level": 0,
     "inherit_resources": false,
     "...": "..."
   }

   export RG="3f9c2c6e-..."   # the id value

2. Add a model to the group.

   A resource group starts with access to nothing. Access is granted on the model, not on the group — the group’s own Resources → AI Models tab only lists what is bound to it (its Add Models button opens these instructions).

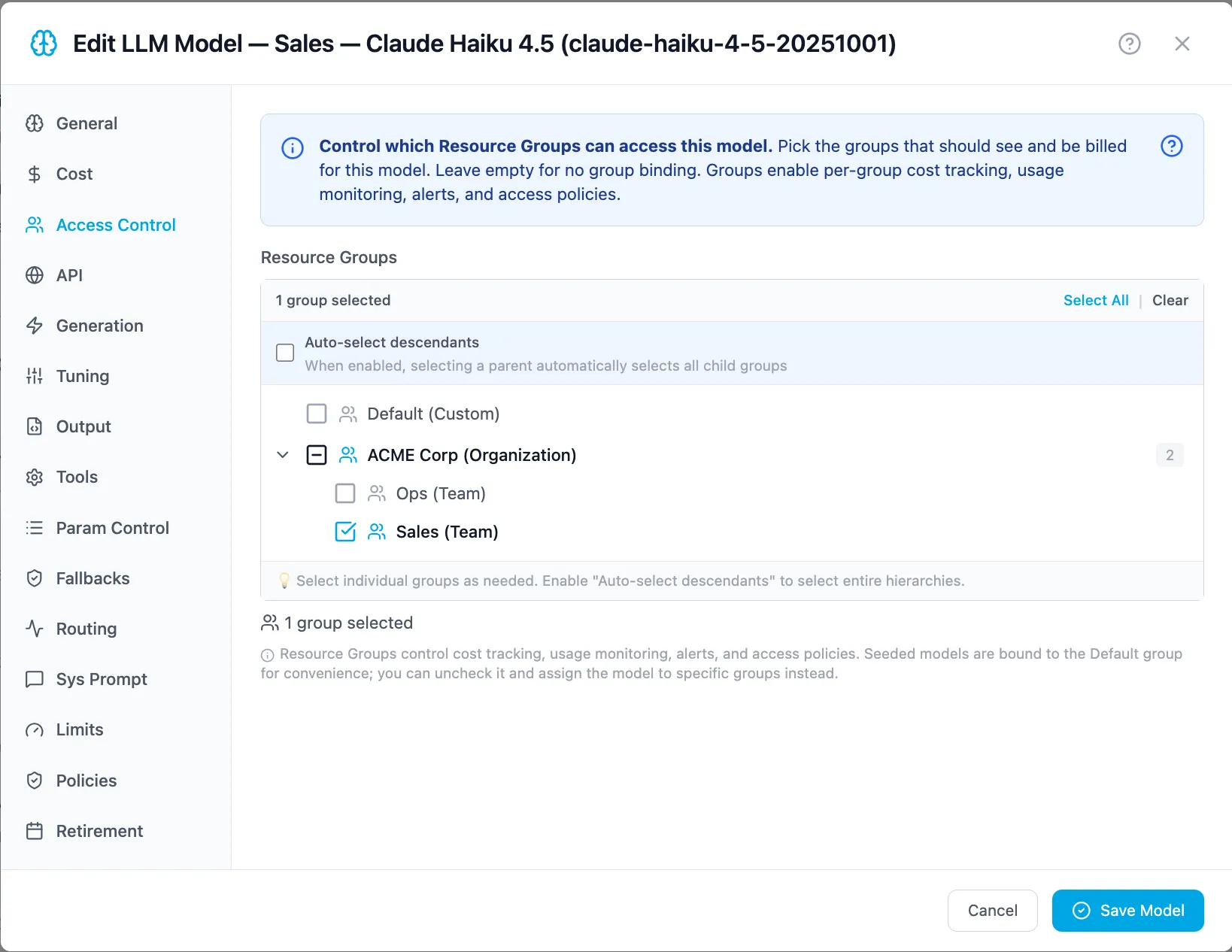

   Admin Console: Resources → AI Models → Configuration.

   • Model already enabled: Edit it → Access Control → add Governance Tour → save.
   • Model not enabled yet: Browse Catalog → Enable the one you want → set its API Key → then Edit → Access Control → add Governance Tour.



   API:

   curl -s "$CP/v1/admin/llms?mode=chat" -H "Authorization: Bearer $TOKEN"

   {
     "models": {
       "b71a...-...": { "id": "b71a...-...", "name": "OpenAI GPT-5.2 Auto-Routing", "model_name": "gpt-5.2", "enabled": true, "...": "..." }
     },
     "total": 1
   }

   export MODEL_ID="b71a..."

   curl -s -X POST $CP/v1/admin/resource-groups/$RG/llm-models \
     -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
     -d "{\"llm_model_id\": \"$MODEL_ID\"}"

   Returns 201 Created (or 409 if the binding already exists — bindings are idempotent to re-assert).

   Routing groups confer no access

   If you use routing groups, remember they grant no model access by themselves: bind both the routing group’s virtual model and each member model to the resource group. See resource groups.

3. Bind a user group.

   API keys give programmatic access; end-user groups give people access (portal login, user-bound keys). Bind the trial user via a fresh end-user group.

   Admin Console: Users → User Groups → New User Group → name it tour-users and add the member trial. Then Resource Groups → Governance Tour → Members → Bind User Group and pick tour-users.

   API:

   # find the seeded trial user's id
   curl -s "$CP/v1/admin/end-users?search=trial" -H "Authorization: Bearer $TOKEN"

   # create an end-user group containing them
   curl -s -X POST $CP/v1/admin/end-user-groups \
     -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
     -d '{
       "name": "tour-users",
       "display_name": "Tour Users",
       "description": "Users taking the governance tour",
       "initial_member_ids": [42]
     }'

   { "id": "7d2e...-...", "name": "tour-users", "...": "..." }

   # bind the end-user group to the resource group
   curl -s -X POST $CP/v1/admin/resource-groups/$RG/end-user-groups \
     -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
     -d '{"end_user_group_ids": ["7d2e..."]}'

4. Create an API key for the group.

   Admin Console: Resource Groups → Governance Tour → API Keys → Create Key.

   API:

   curl -s -X POST $CP/v1/admin/resource-groups/$RG/api-keys \
     -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
     -d '{"name": "tour-key", "access_mode": "shared"}'

   {
     "id": "9a1f...-...",
     "key_value": "sk_brutor_api_XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
     "key_prefix": "sk_brutor_api_XXXX",
     "name": "tour-key",
     "scope": "global",
     "access_mode": "shared",
     "group_id": "3f9c2c6e-...",
     "enabled": true,
     "...": "..."
   }

   key_value is shown only in this response — capture it now.

   export KEY="sk_brutor_api_..."

5. Set a daily token budget and an RPM limit.

   Deliberately tiny values so you can trip them in minutes: 2,000 tokens per day, 3 requests per minute.

   Admin Console: Resource Groups → Governance Tour → Governance → Limits.



   API (this PATCH replaces the whole llm_global_limits document — always send the full desired state):

   curl -s -X PATCH $CP/v1/admin/resource-groups/$RG/llm-global-limits \
     -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
     -d '{
       "llm_global_limits": {
         "tokens": { "daily_limit": 2000 },
         "throughput": { "max_requests_per_minute": 3, "cooldown_seconds": 60 }
       }
     }'

   The response echoes the stored limits document.

   Token caps block; dollar budgets can warn

   Token and request caps always block when exceeded. Dollar budgets (daily_limit_usd / monthly_limit_usd) block only when hard_stop is set — otherwise they emit X-Usage-Warning headers and alerts. Details in limits.

6. Attach a PII guardrail.

   Create a guardrail config that blocks requests containing emails or SSNs on the chat_input surface, bound to your group.

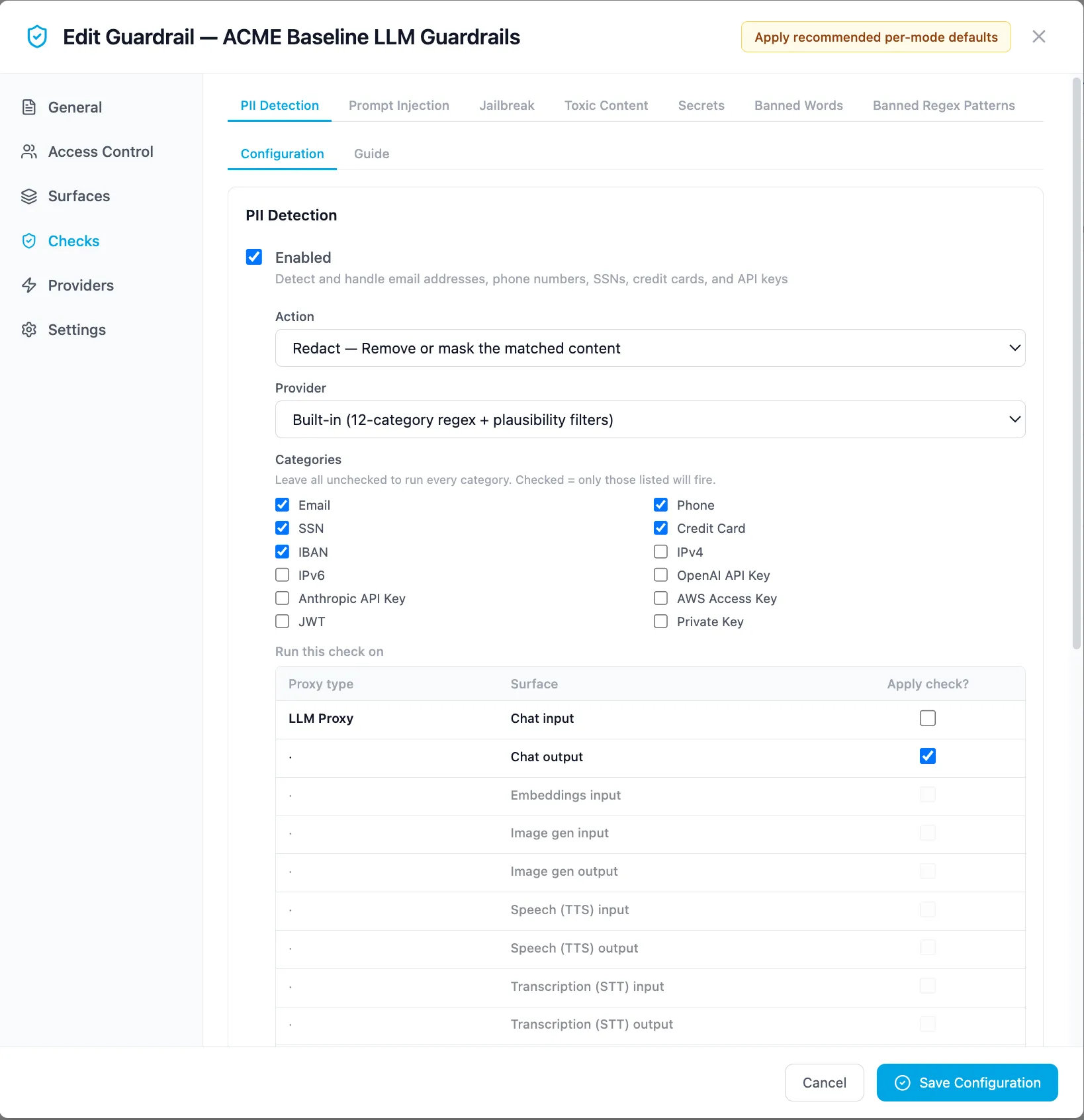

   Admin Console: Governance → Guardrails → New Config → enable PII detection, action block, categories email and ssn, surface chat input, and on Access Control assign the Governance Tour group.



   API:

   curl -s -X POST $CP/v1/admin/guardrails/configs \
     -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
     -d '{
       "name": "tour-pii-block",
       "description": "Block email/SSN in prompts",
       "enabled": true,
       "group_ids": ["'$RG'"],
       "surfaces": { "chat_input": true },
       "builtin": {
         "pii_enabled": true,
         "pii_action": "block",
         "pii_categories": ["email", "ssn"],
         "pii_surfaces": ["chat_input"]
       }
     }'

   { "id": "c4d8...-...", "name": "tour-pii-block", "enabled": true, "...": "..." }

   The two-layer surface gate

   A check runs on a surface only where the config-level surfaces map and the per-check pii_surfaces list intersect. Enabling pii_surfaces: ["chat_input"] does nothing unless surfaces.chat_input is also true. See guardrails.

7. Trip the guardrail.

   Send a prompt containing PII through the new key:

   curl -s http://localhost:8100/v1/proxy/llm/chat/completions \
     -H "Authorization: Bearer $KEY" -H "Content-Type: application/json" \
     -d '{
       "model": "gpt-5.2",
       "messages": [{"role": "user", "content": "Email the report to jane.doe@example.com please"}]
     }'

   The request never reaches the provider — 403 Forbidden:

   {
     "error": {
       "code": "guardrail_blocked",
       "message": "guardrail hit on `email` (1 match)",
       "guardrail": "tour-pii-block",
       "check": "pii",
       "direction": "input"
     }
   }

8. Trip the RPM limit.

   Fire four clean requests inside one minute — the fourth exceeds max_requests_per_minute: 3:

   for i in 1 2 3 4; do
     curl -s -o /dev/null -w "request $i → %{http_code}\n" \
       http://localhost:8100/v1/proxy/llm/chat/completions \
       -H "Authorization: Bearer $KEY" -H "Content-Type: application/json" \
       -d '{"model": "gpt-5.2", "messages": [{"role": "user", "content": "Say ok."}]}'
   done

   request 1 → 200
   request 2 → 200
   request 3 → 200
   request 4 → 429

   The 429 body names the limit and scope, and the response carries a Retry-After header (here, your 60-second cooldown):

   {
     "error": {
       "type": "rate_limit_exceeded",
       "message": "LLM rate limit exceeded at group scope (3 requests/min) — retry in 60s",
       "scope": "group",
       "limit_type": "rpm"
     }
   }

9. Trip the daily token budget.

   After the cooldown, send a few longer requests (e.g. “write 300 words about…”) until the group’s daily total passes 2,000 tokens. The next request is refused with limit_type: "daily_tokens":

   {
     "error": "Daily token limit exceeded: 2143 / 2000",
     "usage_limit": {
       "group_id": "3f9c2c6e-...",
       "group_name": "gov-tour",
       "limit_type": "daily_tokens",
       "current_usage": "2143",
       "max_limit": "2000"
     }
   }

   For daily limits the Retry-After header counts down to the next UTC midnight, when the window resets. And before it blocks, watch the warning arrive: run a request with curl -i once you’re past 85% of the budget and you’ll see an X-Usage-Warning response header.

10. Watch the decisions land.

    Open the Admin Console:

    • Mission Control → Overview shows the gov-tour card with its spend and runs; Mission Control → Analytics → Governance shows the guardrail blocks and policy decisions for the period, and Analytics → Cost the tokens and dollars your tour just burned, attributed to gov-tour.
    • Operations → Logs & Audit → Proxy Logs shows every request — including the 403 guardrail block (with the check that fired) and the 429s — each with a correlation ID you can match to the X-Correlation-Id header your client received.



    Audit logs record the admin actions from this tour too — every group, key, limit and guardrail you created. See the observability tour for the full read-side story.

11. Clean up.

    curl -s -X DELETE $CP/v1/admin/guardrails/configs/c4d8... -H "Authorization: Bearer $TOKEN"
    curl -s -X DELETE $CP/v1/admin/resource-groups/$RG      -H "Authorization: Bearer $TOKEN"
    curl -s -X DELETE $CP/v1/admin/end-user-groups/7d2e...  -H "Authorization: Bearer $TOKEN"

    Deleting the resource group revokes its API keys and bindings; the trial user itself is untouched.

What you now know

Every control you tripped — the 403 guardrail_blocked, the 429 with Retry-After, the token-budget refusal — was enforced inline by the core proxy, attributed to a resource group, and recorded with a correlation ID. That is the whole governance model in miniature: resource groups carry the policy, the gateway enforces it, the ledger remembers it.

Resource groups in depthHierarchy, inheritance rules, and how limits compose across parent and child groups.

GuardrailsAll built-in checks, actions (block/redact/warn), surfaces and external providers like Presidio.

Limits & budgetsToken, dollar, RPM, TPM and concurrency caps — and exactly when each blocks vs warns.

Write it as a scriptTurn this tour into an idempotent provisioning script against the Admin API.
