Shadow AI Discovery

The gateway governs traffic that points at it. Shadow AI Discovery answers the other question: what AI is running in the organization that doesn’t? Collectors and scanner adapters run in your infrastructure — CI, a host, a scheduled job — and send cryptographically signed discovery events to the platform, which reconciles them against the real gateway configuration and surfaces the result in the Asset Register as governed, ungoverned or unknown.

Observability only — by design

Discovery is a deliberately separate plane with no API that changes gateway enforcement. Network discovery sees that a workload talks to OpenAI — never what it sent. Content governance still requires the inline gateway. Onboarding a discovered asset returns a pre-filled configuration payload for an operator to review — it never blind-creates config from untrusted data.

How events are ingested

Collectors POST events to POST /v1/discovery/events on the Control Plane. There is no admin JWT on this endpoint — the Ed25519 signature is the authentication:

1. Register a collector key (POST /v1/admin/discovery/collector-keys) — a base64 Ed25519 public key with a trust_tier: first_party · channel · customer · community.
2. The collector signs each event (canonical JSON, minus the signature block) with its private key and sends signature: {alg: "ed25519", key_id, value}.
3. The platform verifies the signature against the registered key. Missing/bad signature or unknown/revoked key → 401.

Idempotency and dedup are built in: event_id is unique per tenant (a duplicate is a {"status": "duplicate"} no-op), and events deduplicate into one discovered asset per (tenant, asset_key) — re-discovering a dismissed asset re-activates it.

Two properties are platform-computed and never taken from the event:

• Confidence — strongest evidence wins (passive network 0.9 > active probe 0.7 > host-derived 0.5), multiplied by the collector key’s trust tier. A collector’s own confidence claim is ignored.
• Governance status — reconciled against live config: an llm_endpoint is matched to llm_providers by host, an mcp_server to mcp_servers.base_url, an a2a_agent to agent_cards.source_url. Matched to an enabled row → governed; unmatched or disabled → ungoverned; no host to match → unknown.

The egress-log collector

The broadest first-party collector reads destination hostnames from egress proxy, firewall or DNS logs (Zscaler, Palo Alto, Squid) and emits an llm_endpoint event per known AI-provider host — OpenAI, Azure OpenAI, Anthropic, Google (Gemini + Vertex), AWS Bedrock, Mistral, Cohere, Groq, Perplexity.

pip install brutor-discovery
brutor-egress-collector --input /var/log/squid/access.log \
  --gateway https://control.example.com --key collector.key

Evidence lands as tls_sni, passive — the highest-confidence class.

The endpoint collector (Brutor Scout)

Where the egress collector sees the network, Brutor Scout sees the workstation. It’s a small signed-event collector you run on a developer’s machine (one-shot or on a timer). It inventories the AI clients installed there — Claude Code, Claude Desktop, Cursor, VS Code, Codex, Goose, Windsurf — and, crucially, parses each client’s MCP server configuration, so the unmanaged MCP servers developers have wired up surface as discovered assets too. Purely read-only filesystem inspection; it never intercepts traffic or reads payloads.

Scout emits two asset types, both observe-only:

• local_ai_client — an AI client found on a device
• local_mcp_server — an MCP server a client is configured to use (the shadow-MCP surface), with an endpoint block for remote (http) servers

1. Mint a collector key (once per device):

   brutor-scout keygen --collector-id scout-$(hostname)
   #  → register the printed Public key via POST /v1/admin/discovery/collector-keys
   #  → store the Seed as BRUTOR_SCOUT_SEED

2. Preview without emitting:

   brutor-scout scan --dry-run --tenant acme

3. Emit to the gateway (idempotent — re-running only advances last_seen):

   export BRUTOR_SCOUT_SEED=…
   brutor-scout scan --gateway https://control.example.com \
     --tenant acme --collector-id scout-$(hostname)

Discovered devices roll up in the Admin UI under Asset Register → Devices: one row per device with its AI-client and MCP-server counts, drilling into the clients on a device and the MCP servers each is wired to. Evidence lands as config_file, host-derived.

Two ends of the same question

The egress collector answers “what AI destinations does our network reach?”; Scout answers “what AI is installed on our developers’ machines, and what MCP servers do they point at?” Together they cover shadow AI end-to-end — neither sees what the other does.

Local tool-call audit

Inventory tells you a coding agent is installed. It does not tell you whether anyone uses it, or which of those unmanaged MCP servers they actually call. Scout can answer that too, by registering hooks the agent invokes before and after every tool call:

brutor-scout hooks install          # merges into ~/.claude/settings.json
brutor-scout hooks status           # where the spool is, how much is queued
brutor-scout submit --gateway https://gateway.acme.com --tenant acme

Records spool locally and are batch-submitted under the same Ed25519 signature as every other discovery event. Delivery is at-least-once — a laptop that sleeps mid-upload re-sends, and the gateway deduplicates on event_id, so a reconnecting device drains its backlog without double-counting.

Metadata only — and the schema enforces it

The hook receives the command being run and the file being edited. Scout records none of it: only which tool, in which session, allowed or denied, how long it took, and a workspace basename — never a full path.

This is not a promise, it is a shape. observed_agent_events has no column for tool input, output or prompt text, and the record struct has no field for it. Shipping payloads would require changing a migration, which is exactly the review gate it should require.

Two more design points worth knowing:

• The hook always exits 0, including on failure. It runs in the developer’s critical path on every tool call; a hook that can block a tool is a hook that gets uninstalled. A dropped audit record is the cheaper failure.
• Installing merges rather than overwrites. Hooks a developer already has are preserved, and re-installing replaces our entry instead of stacking duplicates.

The payoff is a question a gateway structurally cannot answer:

MCP server	Local calls this week
github	125
filesystem	75
nordica-claims-core	67
notion	48

An inventory row nobody calls is noise. One called hundreds of times a week is a priority — and GET /v1/admin/discovery/agent-events returns exactly that roll-up alongside the raw records.

Observed, never governed

These records live in their own table, not in proxy_logs. That separation is structural rather than a flag: a query against governed traffic cannot accidentally include local activity, so the Assurance Report’s coverage claims stay bounded to calls the gateway actually inspected.

Scout observes. It does not enforce, and nothing here changes what the gateway allows.

BYO scanners: the ingest adapters

Already running an AI scanner? brutor-ingest converts its output into signed discovery events — no bespoke collector required. Four adapters ship in the Discovery SDK (catalog: GET /v1/admin/discovery/ingest-adapters):

Adapter	Modality	Ingests
cyclonedx-aibom	static	CycloneDX 1.5/1.6 ML/AI-BOM from any code/container scanner (Cisco AI-BOM, Trusera, cdxgen) — models, SDKs, agent frameworks, MCP servers
agentsonar	runtime	Knostic AgentSonar process→domain AI classifications — traffic bypassing the gateway
snyk-agent-scan	config	Snyk agent-scan / mcp-scan — MCP servers from local client configs (Claude Desktop, Cursor, …) incl. tool-poisoning findings, skills, agents
safedep-vet	static	SafeDep vet ai discover / vet code scan — coding agents, MCP servers, IDE extensions, AI-SDK usage in Go/Python/JS-TS

# Feed a CycloneDX AI-BOM from CI
brutor-ingest --adapter cyclonedx-aibom -i aibom.json

# Feed AgentSonar runtime classifications, thresholded
brutor-ingest --adapter agentsonar -i pairs.jsonl --set min_ai_score=0.6

What a discovered asset looks like

asset_type ∈ llm_endpoint · mcp_server · a2a_agent · inference_runtime · agent_framework · sdk_usage · unknown_ai, with provider/endpoint details, computed_confidence, governance_status (+ governed_ref when matched), lifecycle status (active · onboarded · dismissed), evidence count and first/last seen. Evidence rows carry the type (dns_resolution, tls_sni, netflow, process, env_var, package_manifest, config_file, well_known_probe, registry_entry, api_inventory), the collector and its trust tier.

Acting on discoveries

Method	Path	Purpose
GET	/v1/admin/discovery/assets	List discovered assets + coverage counts
GET	/v1/admin/discovery/coverage	The coverage attestation (see below)
GET	/v1/admin/discovery/agent-events	Local tool-call activity + most-called MCP servers
POST	/v1/discovery/agent-events	Scout submits a signed batch (signature-auth, no admin JWT)
GET	/v1/admin/discovery/assets/{id}	Detail with evidence
POST	/v1/admin/discovery/assets/{id}/onboard	Returns a pre-fill config payload; marks onboarded
POST	/v1/admin/discovery/assets/{id}/dismiss	Mark not-relevant
POST	/v1/admin/discovery/reconcile	Re-run governance matching for all assets
GET / POST	/v1/admin/discovery/collector-keys	Manage collector keys (POST .../{key_id}/revoke to revoke)

curl -s -X POST http://localhost:5050/v1/admin/discovery/assets/dasset-01K0.../onboard \
  -H "Authorization: Bearer $ADMIN_JWT"

{
  "status": "onboarded",
  "prefill": {
    "kind": "mcp_server",
    "name": "internal-crm-mcp",
    "base_url": "http://crm-tools.internal:8080"
  }
}

Coverage attestation

Discovery’s real output is not a list of assets — it is the answer to what fraction of our AI activity is actually governed? That answer is the population proof under every Assurance Report: a report evidences the traffic it observed, and coverage states how much of the estate that was.

curl -s http://localhost:5050/v1/admin/discovery/coverage \
  -H "Authorization: Bearer $ADMIN_JWT"

{
  "basis": "measured",
  "coverage_pct": 0.87,
  "governed": 27,
  "ungoverned": 3,
  "unknown": 1,
  "dismissed": 4,
  "endpoint_plane_observed": false,
  "statement": "87% of the 31 discovered AI assets are routed through the gateway and therefore in scope for this report. 4 are not, and nothing in this report evidences their behaviour."
}

No collector, no percentage

When no collector has ever reported, basis is unmeasured and coverage_pct is null — never 100%. A tenant that has not installed discovery has not earned full marks, and a full coverage bar is the most misleading thing such a page could show, because it reads as the best possible result rather than as the absence of measurement.

Registering a collector key is intent, not evidence. Only an actual report counts.

unknown (unreconciled) assets count against coverage — an asset we could not match to a configured route is not a routed asset. Dismissed assets leave the denominator but are reported alongside it, because an operator can raise the percentage by dismissing and that must stay auditable. A collector that has gone quiet for more than seven days degrades basis to stale: the ratio is still real, but it describes the estate as last seen.

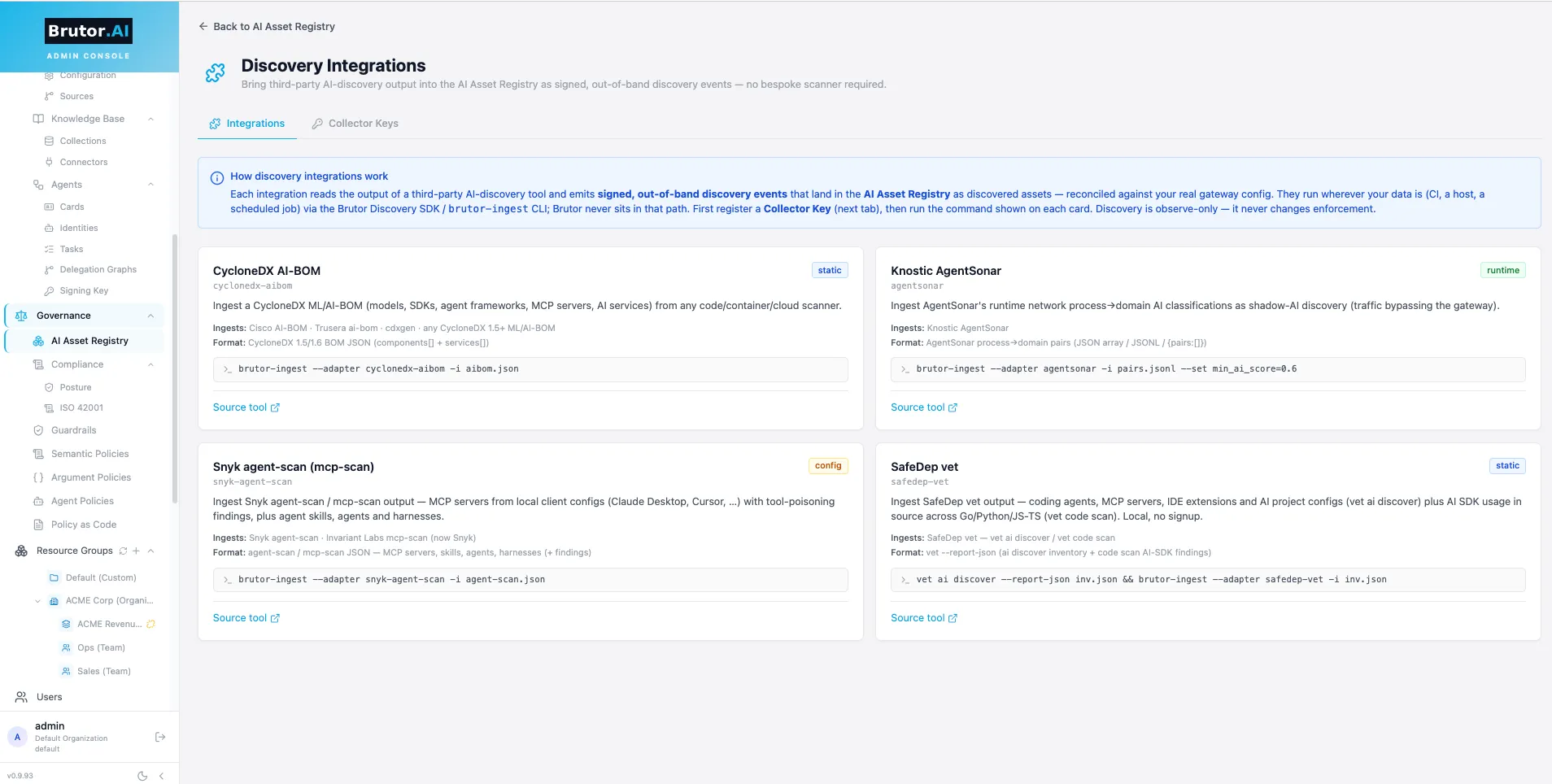

The attestation lives on Discovery Integrations → Coverage in the Admin Console, and is embedded in the Assurance Report’s coverage section and its not_covered gaps.

Discoveries surface in two places: the Asset Register (the ungoverned list, coverage scorecard, and onboard/dismiss actions — Discovery Integrations is a drill-down from its header) and Mission Control’s Governance tab (shadow-AI signals).
