Traffic Data Import

The gateway governs the traffic that flows through it. But an enterprise’s AI spend rarely stops there — employees chat in claude.ai and Claude Desktop, developers run Claude Code against Anthropic directly, teams consume Azure OpenAI from their own subscriptions. Traffic Data Import pulls each vendor’s enterprise analytics/admin API into Brutor’s usage ledger, so Mission Control shows one cost, token and model-usage view across the whole estate: the traffic Brutor governs inline plus the traffic it can only observe.

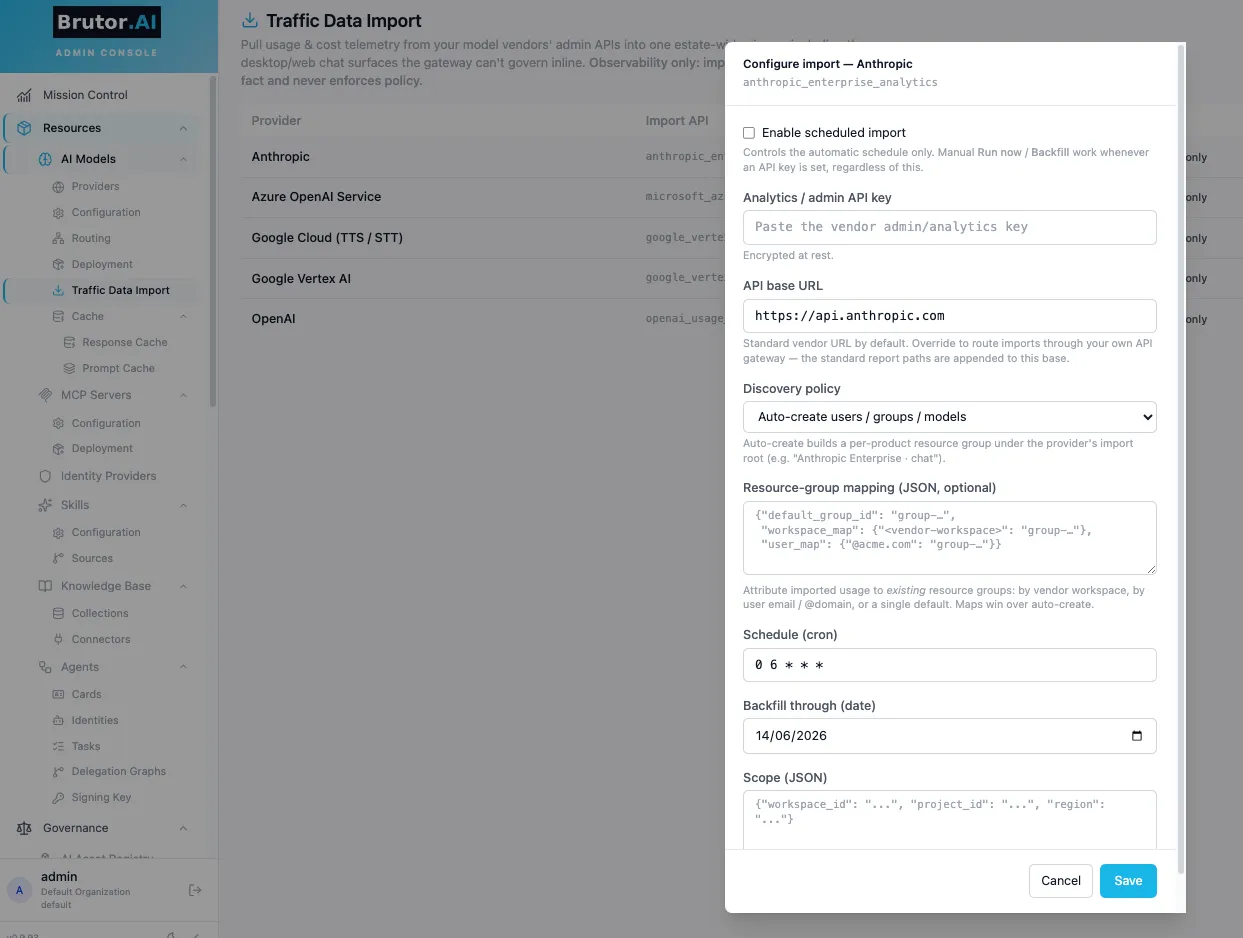

Imported vendor traffic in the usage view

What each provider’s API yields

Provider / API	Surfaces covered	Per-user	Per-workspace	Per-model	Metrics	Window / lookback / rate
Anthropic — Enterprise Analytics API	`chat` (claude.ai + Claude Desktop), `code` (Claude Code), `agent`, `office` — from the API’s `product` field	✔ email	~ no workspace dimension in the API — Brutor substitutes `product`, materialized as per-product resource groups	✔	tokens and cost (USD)	31 d / 365 d / 60 rpm — excludes Bedrock-routed traffic
OpenAI — Usage + Costs API	`api` (platform usage)	✔ user_id	✔ project_id	✔	tokens and cost	31 d / 365 d / 60 rpm
Google — Vertex Monitoring	`api`	✘	✔ GCP project_id	✔	tokens only — cost is computed from catalog prices	30 d / 365 d / 60 rpm
Microsoft — Azure Cost Management	`api` (Azure OpenAI)	✘	✔ resource / resource group	partial (via meter)	cost only	365 d / 365 d / 30 rpm
Microsoft — Graph Copilot reports	`office`, `chat` (M365 Copilot)	✔	✘	✘	activity counts only — no tokens, no cost	30 d / 180 d / 30 rpm

Provider APIs differ in shape, so the import layer normalizes everything to one record: period, surface, user, workspace, model, tokens, cost, events. Where a vendor gives only half the picture (Google: tokens without cost; Azure Cost Management: cost without users), the table above is the honest contract of what you can and cannot attribute.

Anthropic’s `product` field

Anthropic’s Enterprise Analytics API breaks usage out per user, per product and per model (group_by[]=product,model). The product values map to Brutor surfaces:

Anthropic `product`	Brutor surface
`chat`	`chat`
`claude_code`	`code`
`cowork`	`agent`
`office_agent`	`office`
`claude_in_chrome`	`chat`
`claude_design`	`chat`

Because the analytics API has no workspace dimension, product plays the workspace role in Brutor: discovery materializes each product as a child resource group (see below), giving you the same per-group cost attribution, budgets and drilldowns you get from a real workspace dimension — just cut by product instead of team. To cut by team as well, map users to your real resource groups with user_map. Anthropic’s Admin Usage & Cost API (organization/workspace API spend) is intentionally not imported — that traffic is API traffic you should route through the gateway, where it is governed inline.

What discovery auto-creates

Every import run reconciles what it sees into real platform objects — all flagged source='import' (a quarantine mode can hold them for review instead):

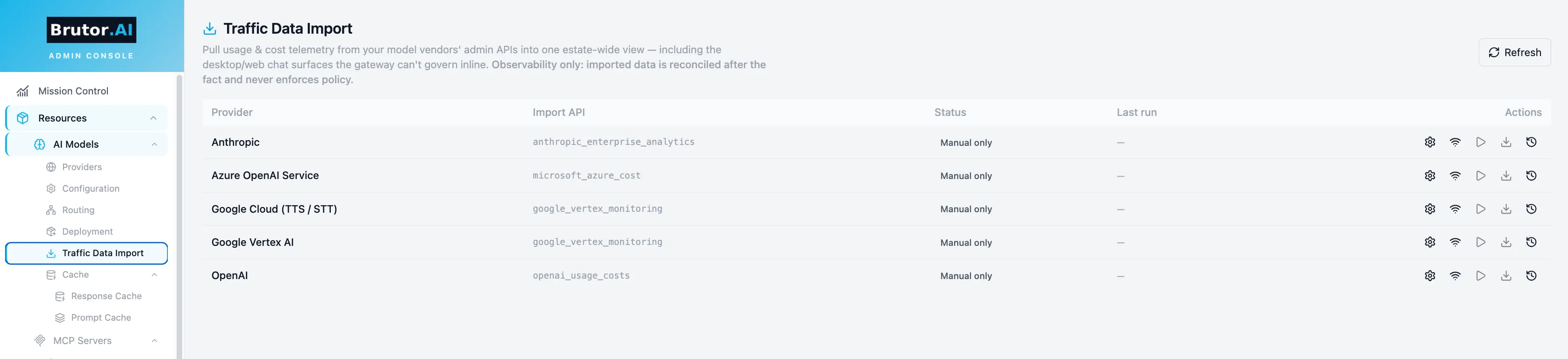

Imported, non-routable model entries in the registry

Discovered in the data	Created as	Notes
Users (email / user_id)	End users	Also added as members of the product/workspace resource group they used
Workspaces (OpenAI project, Azure resource)	Child resource group under “<Provider> (imported usage)”	Per-workspace cost attribution
Products (Anthropic)	Per-product child resource groups: `chat` / `code` / `agent` / `office`	Cost-per-product; each can carry an advisory budget
Models	Model rows with `enabled: false` — shown as Observed (imported) models, invisible in the portal until promoted	Also synced into the AI Asset Registry on the observed plane
The usage itself	Usage-ledger rows (idempotent — re-importing a window is a no-op) + a metrics mirror	Powers Mission Control’s Governed / Observed / All toggle

Operator mappings always beat auto-creation. The import settings accept a mapping policy:

{
  "mode": "auto_create",
  "workspace_map": { "proj_abc123": "rg-data-science" },
  "user_map": { "@claims.example.com": "rg-claims-team" },
  "default_group_id": null
}

user_map (by email or @domain) is the only way to attribute per-user-only data — like Anthropic’s — to your real team structure instead of the auto-created product groups.

Configuring an import

In the Admin UI: Resources → AI Models → Traffic Data Import — list providers, configure credentials and schedule, test the connection, run on demand, backfill, and inspect run history. Import-capable providers appear here even before you’ve configured any model for them.

Via the Admin API:

# Which providers support import?
curl -H "Authorization: Bearer $TOKEN" \
  http://localhost:5050/v1/admin/usage-import/providers?only_supported=true

# Configure + schedule (daily at 06:00)
curl -X PATCH http://localhost:5050/v1/admin/usage-import/providers/{provider_id} \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d '{
    "import_enabled": true,
    "import_schedule_cron": "0 6 * * *",
    "import_mapping_policy": {"mode": "auto_create"},
    "import_backfill_through": "2026-01-01",
    "api_key": "sk-ant-admin-..."
  }'

# Run now / inspect history
curl -X POST http://localhost:5050/v1/admin/usage-import/providers/{provider_id}/run \
  -H "Authorization: Bearer $TOKEN" -d '{}'
curl -H "Authorization: Bearer $TOKEN" \
  http://localhost:5050/v1/admin/usage-import/providers/{provider_id}/runs

Credentials are encrypted at rest. Anthropic requires an Analytics API key with the read:analytics scope, provisioned by the claude.ai Primary Owner.

Budgets and alerts on imported usage

Resource groups touched by an import — including the auto-created per-product groups — are evaluated against their configured dollar budgets after each run. Utilization at or over the warning threshold raises a normal usage alert, deduplicated per period. These alerts are notify-only: an imported request can’t be stopped retroactively, so hard_stop never applies on the observed plane.
